Silicone Contamination Risk in Advanced Fabs PDMS Contamination: The Yield Impact of Standard Microfiber Wipes

Why Fabs Must Eliminate Silicone-Containing Microfiber Wipes to Protect Yield, Optics, and Equipment Reliability

A Foamtec White Paper | December 10, 2025

1. Executive Summary: The Overlooked Silicone Threat

For decades, semiconductor engineers have gone to great lengths to eliminate Silicone (PDMS) from critical process environments. This successful strategy led to the replacement of silicone pump oils (with PFPEs), O-rings (with FFKMs), and O-ring grease to stop outgassing and migration defects.

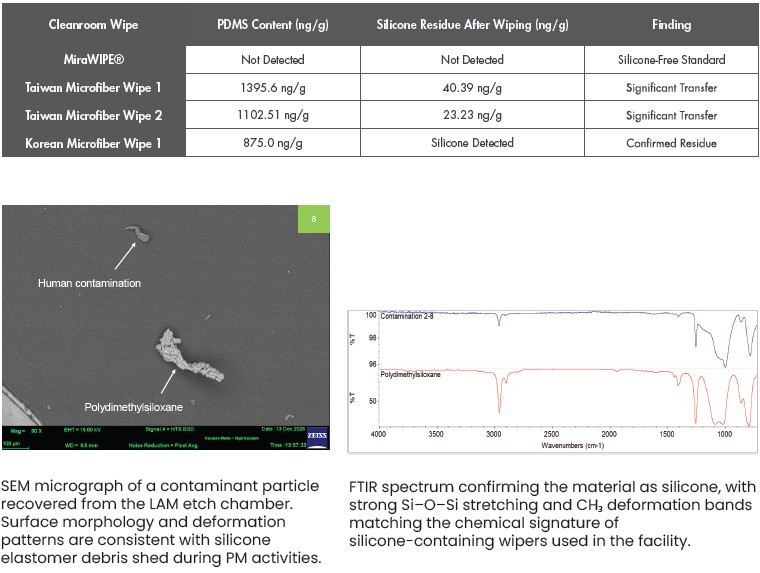

However, many fabs have overlooked cleanroom microfiber wipers as a persistent source of this mobile contaminant. Data confirms that PDMS, used as a lubricant in many Asian-sourced wipes, transfers easily during cleaning. Once transferred, the PDMS polymer's high mobility creates catastrophic cross-contamination, impacting critical front-end and back-end processes, including advanced packaging.

Advanced fabs have conclusively linked silicone contamination to:
▪ Front-End Tools (EUV/Metrology): Optics Hazing, measurement drift, and ESC instability.
▪ Advanced Packaging: Adhesion failures in wafer bonding, chip-to-interposer bonding, and underfill reliability.

Foamtec’s MiraWIPE® is engineered without silicone, providing the verified zero detectable PDMS transfer required to close this contamination loop.

2. The Precedent: Eliminating Silicone as a Mobile Contaminant

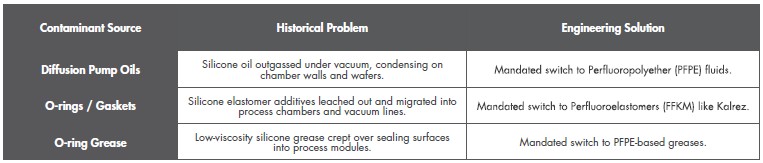

The industry's decision to banish silicone from vacuum and sealing components provides the clear precedent for addressing the wiper risk:

These actions proved that source elimination is the only reliable way to control a highly mobile contaminant like PDMS. Now, the same standard must be applied to microfiber wipers—the last widely used silicone source in cleanrooms.

3. The Cross-Contamination Risk and Wafer Backside Reservoir

PDMS is easily transferred from silicone-containing wipes onto wafer handling components in non-critical modules (tracks, wet benches). The wafer's backside then becomes a mobile PDMS reservoir.

When the contaminated wafer enters a sensitive, high-value tool, the heat or vacuum causes the PDMS to volatilize, migrate, and re-condense on pristine surfaces, even if that tool was cleaned with silicone-free wipers. This cross-contamination cycle is pervasive.

4. Critical Impact on Front-End and Advanced Packaging

Even monolayer films of PDMS severely disrupt advanced processes in both logic fabrication and back-end integration.
A. Front-End Yield and Reliability
▪ Optics Hazing and Drift: Volatilized PDMS film reduces light transmission in EUV and Metrology optics, causing CD drift and destroying measurement repeatability.
▪ Electrostatic Chuck (ESC) Failures: The nonpolar PDMS film on the chuck surface causes wafer slip and thermal non-uniformity, compromising process control.
B. Advanced Packaging and Bonding Failures
PDMS is an effective release layer and fundamentally disrupts the high surface energy required for reliable adhesion in advanced packaging:
▪ Wafer-to-Wafer (W2W) and Die-to-Wafer (D2W) Bonding: Trace silicone contamination on the bonding interface (dielectric or copper) prevents the required atomic-level bonding, leading to voids, delamination, and electrical opens/shorts.
▪ Chip-to-Interposer Bonding: Reduces the adhesion strength of underfill materials and thermal interface materials (TIMs).
▪ RDL and Resist Adhesion: Compromises the reliability of Re-Distribution Layer (RDL) formation and surrounding photoresist steps.

5. MiraWIPE®: Engineered Source Elimination

MiraWIPE is engineered specifically to break the mobile PDMS contamination loop. It is a silicone-free advanced microfiber wiper that maintains high particle and residue removal without the risk associated with Asian-sourced wipers.
      ▪ Purity Verified: Guaranteed no PDMS, silicone binders, or lubricants are used in its manufacturing.
      ▪ Performance: Provides superior particle entrapment and abrasion resistance necessary for high-volume PMs in critical environments.

6. Recommendations for Fab Engineers

To protect yield and sustain process stability, source elimination of PDMS from all cleanroom tools is the only reliable strategy:
1. Mandate Fab-Wide Control: Extend the use of certified silicone-free wipers to all wafer-contact and transport modules (tracks, wet benches, etch/ash chambers) to prevent wafer backside cross-contamination.
2. Audit Materials: Use analytical detection methods to identify and retire all existing PDMS-containing microfiber wipes.
3. Standardization: Standardize on MiraWIPE® to eliminate the final pervasive source of mobile silicone contamination.
